PP Stacker Unstacker
Automated platform for accurate handling, stacking and unstacking of laser bars with programmable sequences and multi-camera alignment.
Key features
- Automated laser-bar stacking and unstacking
- Direct pick from blue tape, GelPack or customized tray

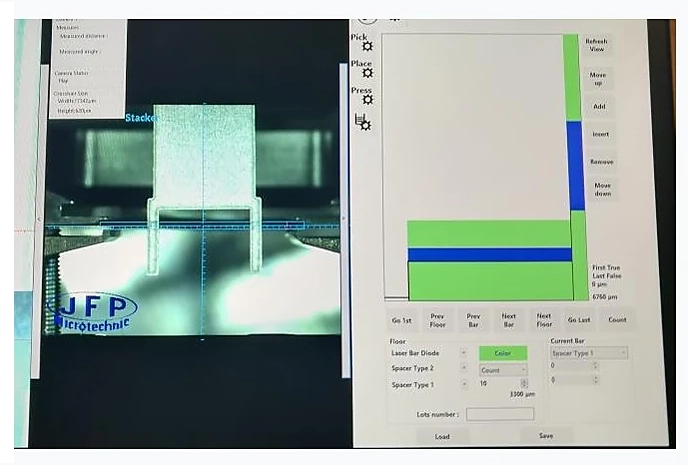

- Programmable stack sequences
- Very low picking force

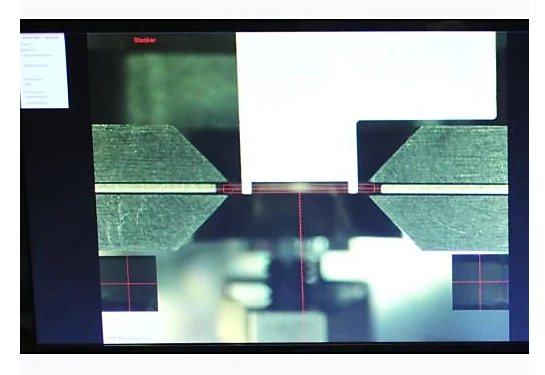

- Three-camera vertical vision
- Continuously adjustable magnification
- Stack data logging and failure detection
- Customized station configurations
Applications
Technical specifications
Laser bar
- Bar length: up to 35 mm
- Minimum cavity size: 150 µm
- Minimum thickness: 80 µm
- Wafer / WafflePack / GelPack: 2 or 4 inches
- Customized trays supported
Vision
- 3 UHD color vertical cameras: 5 MP
- 29-inch monitor
- Adjustable FOV up to 35 mm
- Digital zoom ×11
- Vertical vision of bars and stack package
Stacker fixture
- Automatic feeders for bars and/or spacers
- Stack height: up to 20 mm
- Micrometer XY alignment base
- Customized or JFP bar fixture holder
Performance
- Picking force: < 5 g
- Production: approximately 5 s/bar
- Dry cycle: up to 600 parts/hour
- Stack logging and failure detection
Facilities
- Power: 100 / 230 VAC, 1 kW
- Dry air: 5 bar
- Vacuum: 90%
- Dimensions with frame: 900 × 830 × 1750 mm
For the complete specification and available configurations, download the official JFP Microtechnic documentation.
