MS Manual Scriber
Compact high-precision manual scriber with true vertical vision, adjustable scribe force and fine X/Theta positioning.
Key features
- True vertical diamond-head motion
- High-accuracy targeting without parallax
- Fine X positioning for narrow scribe streets
- Toe and heel cut angles
- Dots, short marking and full scribe lines
- Ultra-HD vision with digital crosshair
- Compact table-top design
- No compressed air required
Applications
Technical specifications
System
- Table-top compact system
- Manual safe-drive Z movement
- Thickness range: 0–9 mm
- Adjustable scribe force: 5–150 g
- Throat: 200 mm
Vision & alignment
- 5 MP Ultra-HD camera
- Resolution: 2592 × 1944
- Full FOV up to 11.7 mm

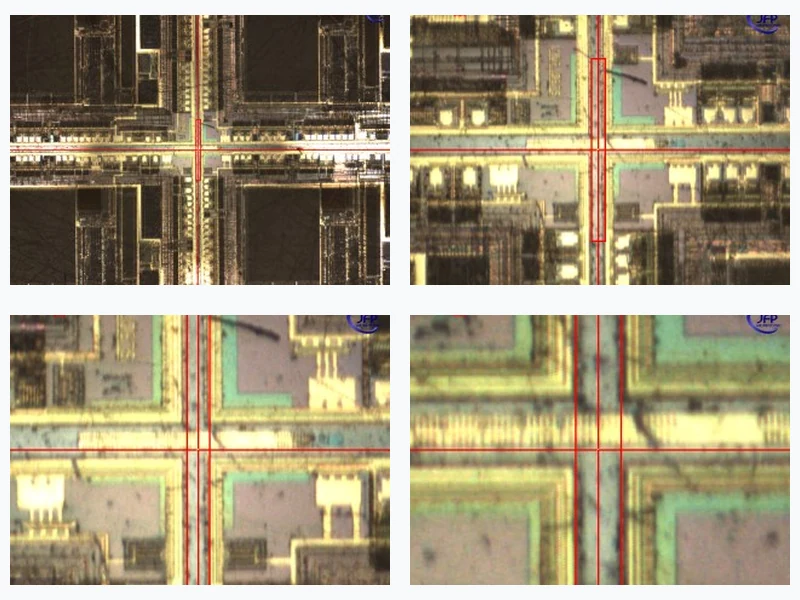

- Digital crosshair and digital zoom
- Coaxial and oblique LED lighting
- Line-width measurement
Work stage
- Substrate size: up to 200 mm
- Vacuum hold
- Manual handling
- Rotary Theta base with micrometer fine adjustment
- Scribe length: 0–200 mm
Facilities
- Power: 100 / 230 VAC, 300 W
- Dimensions: 400 × 500 × 352 mm
- Weight: 25 kg
- No compressed air required
For the complete specification and available configurations, download the official JFP Microtechnic documentation.
