JFP Process Inspection Camera
Ultra-HD process camera option for visual inspection of micro-assembly, bond and placement control, pick/place operations and glue-deposit monitoring.
Key features
- Visual inspection of micro-assembly

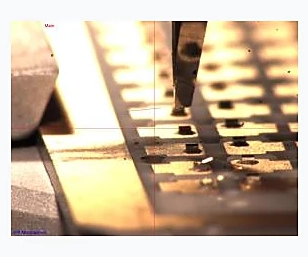

- Combined inspection of bonds and placements
- Real-time glue-deposit control
- Vision of picking, operations and placement
- Adjustable tilt angle and side view
- Image capture and movie recording
- Optical and digital zoom
- Suitable for precision process monitoring
Technical specifications
Vision
- Ultra-HD camera: 5 MP
- Optical zoom capability: ×10
- Field of view: approximately 2–20 mm
- Digital zoom: ×11
- PC + 22-inch screen
- Adjustable tilt angle
- Side-view capability
Functions
- Image capture
- Movie recording
- Pick / operation / placement monitoring

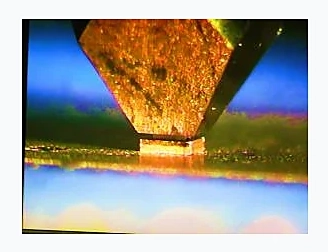

- Glue-deposit control

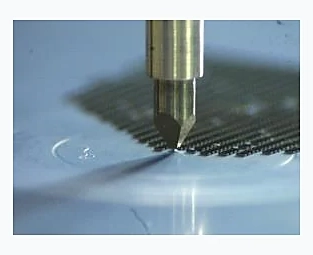

- Diamond-tool angular setup checking
For the complete specification and available configurations, download the official JFP Microtechnic documentation.
