WB200e Manual & Semi-automatic Wire Bonder
Multi-purpose wire bonder for R&D, prototypes and small series, supporting manual, semi-automatic and optional Auto-Bond operation.
Key features
- Ball, wedge, bump and ribbon bonding
- Manual, semi-automatic and optional Auto-Bond modes
- Motorized X/Y and Z axes
- Fine-pitch bonding capability

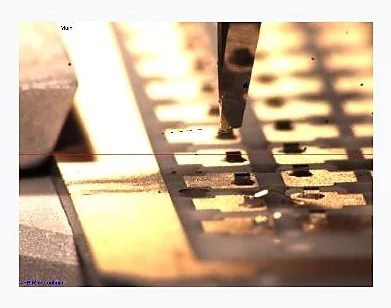

- Programmable loop formation
- Deep-access bond head

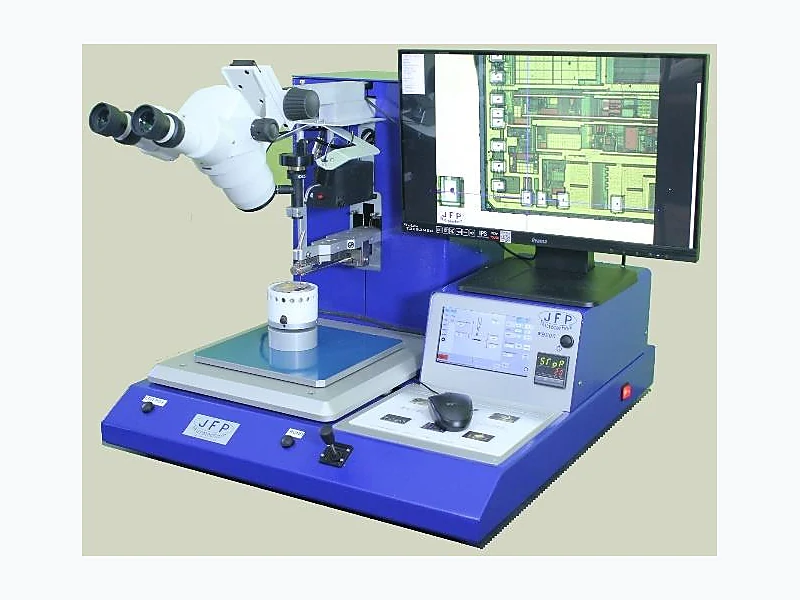

- Optional vertical video microscope
- Vibration-free high-accuracy design
Applications
Optional configurations
Technical specifications
System
- Bond arm length: 165 mm
- Full throat: 200 mm
- Motorized Z travel: 40 mm
- Z resolution: 0.23 µm
- Motorized X/Y: 100 × 100 mm
- X/Y resolution: 0.23 µm
Bonding
- Ultrasonic power: 0–5 W
- Transducer: 62 kHz standard
- Bond force: 10–150 cN programmable
- Bond time programmable
- Gold wire: 17–50 µm
- Aluminium wire: 17–50 µm
- Ribbon: 40–250 µm wide, 12–25 µm thick
Modes & vision
- Semi-Auto with microscope
- Full Manual Z with microscope
- Auto-Bond with vertical camera and multi-height focus
- UHD 5 MP camera
- Standard FOV approximately 2.7 mm for fine pitch
- Digital zoom and digital crosshair
Workholder
- Heater stage up to 250°C
- Temperature accuracy: ±1%
- Height adjustment: ±10 mm
- Package thickness up to 110 mm
Facilities
- Electrical: 100 / 240 V, 50–60 Hz
- Current: max. 5 A
- Dimensions: 640 × 710 × 550 mm
- Weight: 60 kg
For the complete specification and available configurations, download the official JFP Microtechnic documentation.
